FPV Tools and Materials for Building Drones and Fixed Wings - Oscar Liang

fpv_tools_1

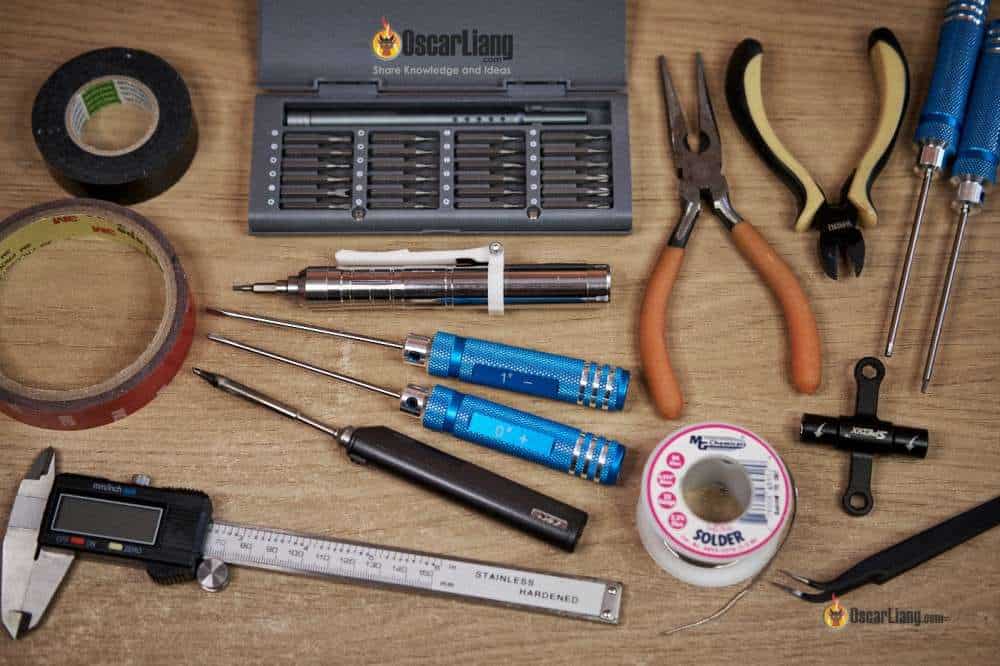

Here is a list of essential FPV tools, tapes, glues and materials for building and repairing FPV drones and fixed wings. I will make recommendations on what products you should get that are useful for building, repairs and troubleshooting.

Getting the “essential tools” listed in this post should be adequate to get you started with building and repairing an FPV drone and fixed wing. Having some of the “Nice-to-have tools**“** can make your builds more professional looking and can help repair/troubleshoot your drone, but by no mean necessary.

All the links in this page are affiliate links. It doesn’t cost you a dime more, but it sends us a few cents every time a purchase is made to keep this blog going. Thanks!

Table of Contents

FPV Toolkits​

These FPV toolkits come with essential tools for building and repairing FPV drones at home or in the field. They are packaged in a neat carry case, making it easier to pack for a day of flying. Designed specifically for FPV, these all-in-one toolkits are reasonably priced and include decent quality tools. This convenience eliminates the need to search for each item separately.

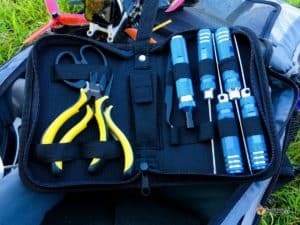

Newbeedrone KitRDQ Drone Tool KitFlywoo Tool Kit
fpv_tools_2fpv_tools_3fpv_tools_4
Additional soldering tools. Great quality tools. Great prop wrench.One of the cheapest. Decent quality tools.Wide variety of tools. Multimeter included. Slightly more expensive.
Find this product here: NBD GetFPVFind this product here: RDQFind this product here: Flywoo GetFPV

For casual FPV pilots, the RaceDayQuads kit offers unbeatable value. It’s the least expensive and provides a versatile selection of tools. On the other hand, the NewBeeDrone kit includes a full soldering suite, making it ideal for advanced building and repair. These two kits are particularly geared towards the functional needs of serious FPV racers or freestyle pilots, and I highly recommend them. Ultimately, the choice depends on your budget and the capabilities you need.

Essential Tools​

These are the recommended and must-have tools for building and repairing your mini quad.

Soldering Tools​

You will need a soldering iron for building and repairing FPV drones. Here are my product recommendations, and in this post I will explain in more details how to choose a good soldering iron and solder wires.

Soldering Iron (Sequre SI012)Solder WiresSolder Flux
fpv_tools_5fpv_tools_6fpv_tools_7
Compact and portable. Powered by 12V-25V or USB PD3. Rebranded by HGLRC RC2, See my review.Kester and MG Chemical are some of the best solder wires I’ve ever used. Can’t go wrong with either one.Makes soldering easier. Improves soldering quality.
Find this product at: RDQ GetFPV AliExpress AmazonFind this product here: Kester 63/37 MG Chemical 63/37Find this product here: Kester Flux Pen MG Chemical Flux Syringe

These are helpful add-on for soldering.

Solder Helping HandSmaller Helping Hand
fpv_tools_8fpv_tools_9
For holding PCB and components in place while soldering.For smaller parts and wires
Product Page: Amazon AliExpress Cheapest worth having (Amz)Product Page: AliExpress: https://s.click.aliexpress.com/e/_c31Va9Pf
Tip CleanerMounting Putty
fpv_tools_10fpv_tools_11
For cleaning the tip of soldering iron, easier to use than wet sponge.Aka Blu Tack, putty can be used for holding small wires and components in place.
Find this product here: Amazon AliExpressFind this product here: Amazon

Hex Screwdriver Set​

fpv_tools_12

Hex screws are commonly used to hold your FPV drone together, so getting a set of hex screwdrivers (Allen keys) is extremely important. The most important sizes you should have are:

  • 1.5mm

  • 2.0mm

  • 2.5mm

Here are some good options:

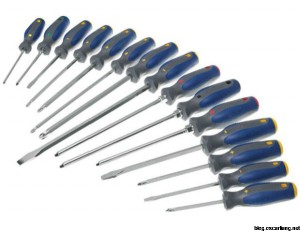

Assorted Screwdriver Set​

fpv_tools_13

For the screw sizes typically found on RC planes and wings, both cross slotted and single slotted might come in handy. Some of these sets on AliExpress come with some hex screwdrivers too that can save you some money.

Prop Nut Tools​

fpv_tools_14

For removing and securing propeller nuts requires a dedicated “prop tool”. You could just get a generic 8mm hex nut socket wrench, but I’d recommend getting a tool that’s designed specifically for FPV which are easier to use. There are a lot of options:

  • Some have one-way bearing that allows it to turn one direction – one side for removing the prop nuts while the other side for fastening. It allows you to basically tightening/loosen the nut without lifting the tool which is more efficient.

  • Some tools also have 1.5mm, 2.0mm or 2.5mm hex bit which are handy to have

Find this products here:

Scissors​

fpv_tools_15

For cutting tapes and small wires. When I am being lazy I’d also use it for stripping wires before soldering, perhaps not the best practice but it gets the job done.

Wire Cutters​

fpv_tools_16

I use wire cutters for cutting zip ties, electrical wires, control rods etc, basically for things that are too hard for scissors.

Pliers​

fpv_tools_17

For accessing hard to reach spots and gripping components while working with other tools (for example when soldering a wire to an XT60 or ESC power, the wire might become too hot to hold by hand). It can also be used as a nut wrench.

For the most part, a pair of needle nose pliers will be your tool of choice here, but a variety wouldn’t hurt either.

Forsep​

This tool is extremely versatile. The long, curved nose allows you to reach the tight areas common in FPV drones. The scissors-style handle provides more strength and precision than tweezers. Additionally, it locks in place, allowing you to set it down and free your hand for other tasks if needed.

Multimeter​

fpv_tools_18

A digital multimeter (DDM)is used to troubleshoot your quad’s electronics, measuring voltage, current, resistance, and test for short circuit. I have a whole tutorial explaining how to use a digital multimeter on an FPV drone.

A multimeter is a small investment that can potentially save you hundreds of dollars in damaged electrical parts by testing circuits before plugging them in. A cheap multimeter will be fine for the purposes of testing for shorts, finding broken wires and checking battery voltage.

Some good DDM purchase options are:

Smoke Stopper​

fpv_tools_19

A “smoke stopper” is a testing device that you connect between the FPV drone and LiPo battery. You use it when you plug in the battery for the first time to see if the drone has a short circuit, which could potentially damage your components without a smoke stopper.

I recommend the Vifly ShortSafer V2 (review), it works and you can buy it off the shelf:

LiPo Voltage Checker​

fpv_tools_20

By simply connecting the balance lead of a LiPo battery to a LiPo checker, it tells you the voltage of the battery, as well as the voltage of each cell. It’s an important tool to have to monitor the state of your LiPo batteries on the go.

ToolkitRC MC8​

fpv_tools_21

It’s more than just a battery checker, it’s also a servo and ESC tester and can read various RC signals. See my review on what it does here: https://oscarliang.com/toolkitrc-mc8/

LiPo Safe Bags​

fpv_tools_22

While LiPo bags may not be the most effective solution at stopping or containing a battery fire, they are useful for storing your batteries temporally and for transportation

Get your LiPo bags from:

Ammo Box​

fpv_tools_23

Metal ammo boxes are great for storing your LiPo batteries during or after charging as they can prevent fire from spreading more effectively than typical LiPo bags.

Get your Ammo Box from:

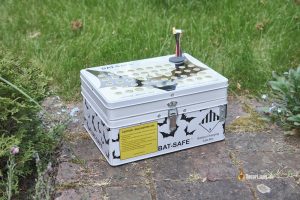

Bat-Safe LiPo Box​

fpv_tools_24

The Bat-Safe box safely contains battery fires, vents hot gases, filters flame and soot, while ensuring easy battery charging and transportation. It’s like the upgraded version of the Ammo box. See my full review here: https://oscarliang.com/bat-safe-lipo-battery-charging-box/

You can find the Bat-Safe Box here:

Nice-to-have Tools​

Your FPV friends will surely be impressed by these tools :)

Electric Screwdriver​

fpv_tools_25

Not necessary but a godsend if you have to do a bunch of 20mm, 30mm long screws often. Simply press a button and the screwdriver will do the rest for you. They also come with a wide selection of screwdriver bits, which could save you from buying those screwdrivers separately.

I recommend the ES126, it’s quite powerful and good quality. One charge can last weeks.

Tool Bags​

fpv_tools_26

Way better than using Ziploc bags. Can hold small tools and components when taking equipment to the field.

Bench Power Supply​

fpv_tools_27

A bench power supply (PSU) has variable voltage output that can power many things, including your soldering iron, test your quad, FPV components, LiPo charger and so on.

My favorite at the moment is the ToolkitRC P200. It’s versatile and compact.

3D Printer​

fpv_tools_28

One of the biggest benefits of 3D printing for FPV drone enthusiasts is the ability to quickly and easily replace broken parts or make modifications to existing designs.

I have a tutorial to help you get started with 3D printing: https://oscarliang.com/3d-printer/

Tweezers​

fpv_tools_29

Tweezers are used to hold and move small components and wires into place. Look for longer length tweezers to make it easier to access small components. Cross-lock tweezers (or reverse tweezers) are preferred because they apply pressure when you release them, they won’t let go of your work even if you set them down.

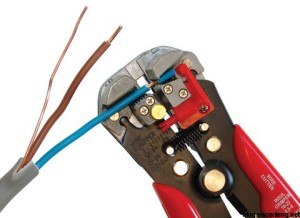

Wire Strippers​

fpv_tools_30

I have one but I rarely use it (mostly due to laziness), most of the times I just use scissors to strip wires. But wire strippers provide more consistent and precise results if you are a perfectionist. Normally they only cover a certain range of wire gauge, make sure the pair you get meet your requirement.

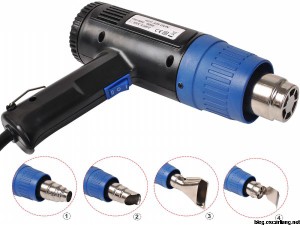

Heat Gun​

fpv_tools_31

Heat gun, or hot-air gun, is mainly used to shrink heat-shrink insulation tubes. Most people would just use a lighter, hot air gun is perhaps an overkill, but it provides more consistent heat and don’t leave burn marks.

Rotary Tool​

fpv_tools_32

Drills can be used to make modifications to even the most stubborn of materials. They can be used for shaping framework or components as well as creating new hole placements for screws or other gear.

Most frames and components purchased from reputable dealers should correctly fit from the get go. However, sometimes small modifications may have to be made in order to get everything to fit perfectly. A rotary tool or drill is nice to have around for working with difficult to modify materials like carbon fiber and aluminium.

Dremel rotary tool kit is a high end, name brand that can be used without a power cord.

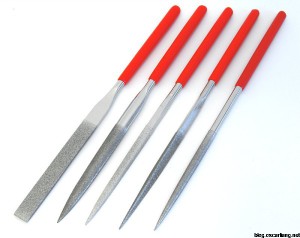

File Set​

fpv_tools_33

You’ll use these files to modify and clean up things like carbon fiber frame parts, to give them a nice and smooth finish.

Digital Calliper​

fpv_tools_34

Useful for precise measurement up to 0.1mm.

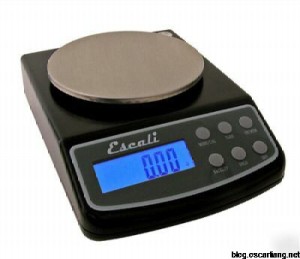

Digital Scale​

fpv_tools_35

Every gram counts for RC models, so having an accurate tool to weigh your quadcopter and components is important. Having 1g precision is good enough generally, but 0.1g is ideal especially for those micro quad components. Make sure maximum capacity is over 1kg, if you plan to build larger models you might want to choose one with even higher weight limit.

Clamp Meter​

fpv_tools_36

A clamp meter allows you to measure current instantaneously by clamping the jaws around a wire without the need to break into the circuit to take measurements. It’s capable of measuring higher current than a multimeter, but the accuracy might be lower and they are fairly expensive.

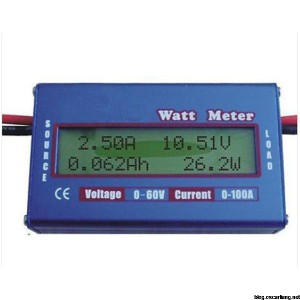

Watt Meter​

fpv_tools_37

A watt meter (or power meter) can measure current drawn and power consumption. It’s useful for testing motor or even measuring the power of a whole quadcopter. It’s important to get one with XT60 connectors or open wires so you can solder your own. Rating up to 60V and 200A would be desirable for FPV drone use.

Soldering Fume Extractor​

fpv_tools_38

Solder fumes are very bad for your lung. Some people can become sensitized to flux fumes, especially from the older rosin flux used in cored solder, and get breathing problems.

Desktop Fan​

fpv_tools_39

Great for cooling when you power the VTX on the bench, it can double as soldering smoke fan (suck the fume away).

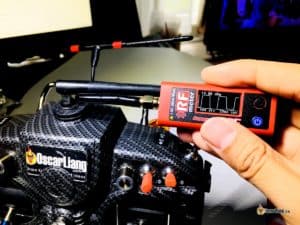

RF Power Meter​

fpv_tools_40

For testing and measuring radio/video transmitter output power. ImmersionRC Power Meter V2 is an compact and affordable option though accuracy is not guarantee, it’s better than nothing.

Antenna SWR Meter​

fpv_tools_41

Understanding the SWR of your 5.8GHz antenna can help decide which frequency or channel you should use for optimal performance What’s antenna SWR: https://oscarliang.com/best-fpv-antenna/#SWR. Curious about measuring antenna SWR? Check out my tutorial for a deep dive into the process:: https://oscarliang.com/litevna-measure-antenna-swr/.

Get your LiteVNA from these vendors (IMPORTANT: ensure it supports up to 6.3GHz!):

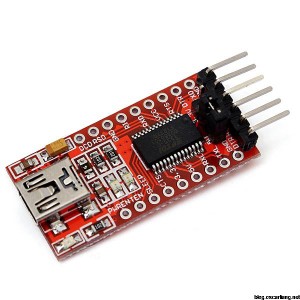

FTDI Adapter​

fpv_tools_42

FTDI adapter, aka serial converter, can be useful for programming ESC, OSD, FC, configuring GPS etc. In the events of damaged USB port on your FC, you can also use it to connect your FC to your computer via one of the UART.

fpv_tools_43

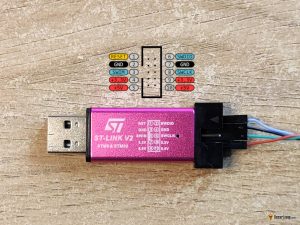

This is used to flash devices with STM32 processors, such as ExpressLRS receivers, flight controllers and ESC.

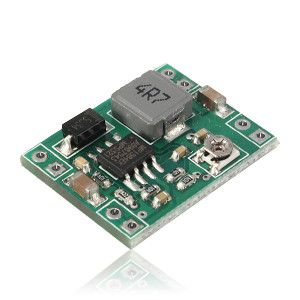

Voltage Regulator​

fpv_tools_44

It’s useful for powering VTX when there’s no BEC on your FC. It’s tiny and light weight, which is useful for FPV drones and RC planes, it’s also handy to have for electronic projects. It supports a wide range of input voltage from 5V, or 2S all the way up to 6S, and the output is adjustable using a screw driver (you’ll need a multimeter to verify the output voltage).

Get this mini voltage regulator from these vendors:

FPV Backpack​

fpv_tools_45

FPV Backpacks are extremely useful because they are designed specifically for storing typical FPV gear. Sure, you can just use any ordinary backpack, but they are not going to be as efficient and convenient to use for FPV stuff. And they usually lack the necessary padding on the outside to protect your gear if you drop it.

Micro-fibre Cloth​

fpv_tools_46

Use a proper microfibre cloth to clean your camera lenses and goggles screens to avoid scratching the glass!

Tools for FPV Fixed Wings​

Hobby Knife / Utility Knife​

fpv_tools_47

Hobby knife is great for cutting and removing foam, tape and heatshrink. Box cutters would do too, but they tend to be less precise and less sharp.

Pearl Head Pins​

fpv_tools_48

For holding foam parts / carbon parts together if you are using glue that takes a while to dry.

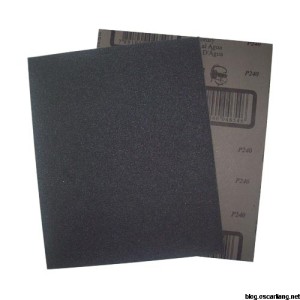

Sand Paper​

fpv_tools_49

You want to sand the foam surfaces and carbon fibre spars before apply glue to them, it makes them stick better.

I’d say anything between 40 grits to 240 grits is fine. It depends on your preference really, as long as you’re not ripping bubbles off the foam. I personally use 80 to 120 grit, I find anything less will make the beads of foam pop out, and anything more than 120 takes a long time to achieve the desired result.

Servo Tester​

It’s useful for testing servos, and centring them when setting up elevons. Also useful for troubleshooting and testing ESC and motor spin direction. You may also use it for motor thrust testing.

fpv_tools_50

Weight for CG​

fpv_tools_51

These are weight blocks you can place in your wing to balance CG. It’s not a bad idea if you want something neat, but I normally just use coins. Actually coins turn out to be cheaper.

Servo Cable Crimping Tool​

this is used for crimping wires onto lugs. You don’t need to buy one right away if you’re just getting into the hobby but eventually the day will come when you will need one and will find it useful.

Servo connectors are Dupont 2.54mm, balance leads are JST-XH 2.54mm.

Scotch Heavy Duty Packing Tape​

The must have tape for general purposes – covering, reinforcing hinges, laminating… Sellotape tape is okay, but I find good quality packing tape are normally thicker and stronger.

Color Packing Tape​

Sometimes referred to as wing tapes, color packing tapes are great for decorating your wings, and adding some colors to it. It’s often used for covering and laminating.

The ones I use are thinner than the heavy duty packing tape and aren’t as strong. But it doesn’t add any noticeable weight to the aircraft which is what I like!

Fibre Tape​

AKA Reinforce Packing Tape – it’s extremely strong and sticky! Often used to protect leading edges and reinforcing weak foam parts and joints. It can also be used for covering your servos in the wing.

Outdoor Vinyl Tape​

It might feel similar to electrical tape, but it’s less stretchy and has a shiny finish and stick much more securely. It’s also twice as thick as packing tape. It conforms to irregularity well, great for applying on control surfaces, like on top of servos, it gives it a very smooth finish

Duct Tape​

Stronger than packing tape and works much better on irregular surfaces, but it’s also much heavier; it’s easier to remove and replace; another disadvantage is that they tend to wrinkle up under the sun. it’s usually a choice between this or outdoor vinyl tape

Tapes​

You can probably get 90% of the jobs done using 2-3 types of tapes, but it’s useful to have the variety for different applications too.

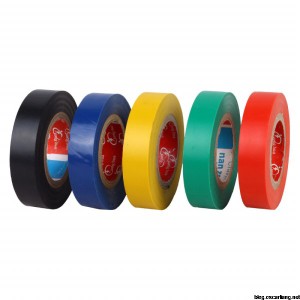

Electrical Tape​

fpv_tools_52

Electrical tape is a must-have whenever working with electrical stuff. It’s great for insulation and holding parts in place in your FPV drone build. I also use it for masking when I am soldering.

3M is the only brand I’d recommend at the moment when it comes to electrical tape. They are stretchy vinyl and slightly flexible, great for wrapping motor wires or ESC on the drone arms too. 3M offer a range of products such as the Suepr 33 and 35. I’d recommend 33 as the top option. 35 is also okay, but they don’t work as well in the cold nor have the same adhesive as the 33. However 35 offers more color options and 33 only comes in black I believe, not really relevant for FPV as we don’t normally need to color code our wires.

Double-sided Tape​

fpv_tools_53

Double sided tape is for sticking components inside the build. If you want some really sticker and strong ones, get the 3M Scotch brand, that’s the sh*t! :) Great for sticking two separate things together, like a receiver to the frame. It takes a few hours to cure, once it’s secure it’s hard to remove.

Kapton Tape​

fpv_tools_54

Kapton tape is basically non-stretchy translucent electrical tape usually comes in yellow/orange color. It can withstand high temperature and won’t melt easily, therefore is great for covering PCB when soldering, and wrapping components when you don’t have the right sized clear heatshrink.

Masking Tape​

fpv_tools_55

It’s basically just sticky paper :) You can tear it off the reel with your fingers, very convenient to use if you just want to hold something in place temporally during the build. It can be removed easily without leaving any mess behind. You can also write on it since it’s just paper.

Cloth Tape​

fpv_tools_56

A.k.a gaffer’s tape, it’s flexible like cloth, great for wrapping things around. It’s sticky but also easy to remove. I use these for wrapping the motor wires to the arms, provides certain protection to the wires from prop strikes too.

Glue​

Any foam friendly glues would do!

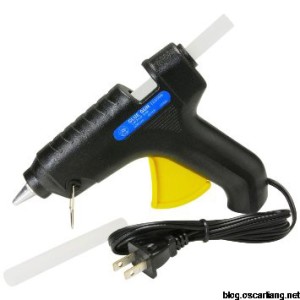

Hot Glue​

fpv_tools_57

Hot glue is probably the most popular option for building/repairing foam models. Because they melt into the foam like a chemical glue, but also creates an extremely strong physical bond at the same time.

The strength is also its downside. The bond is so strong it’s near impossible to remove without ripping the foam apart. Sometimes you might want the foam to just fall apart in a crash rather than completely destroyed? It’s a personal preference.

The other properties is that it sets very quickly as it cools down. But that’s also the disadvantage, because you have only a short time to position the parts. That gets worse in cold weather.

E6000 Glue​

Currently my favourite glue, I am using this as a replacement to hot glue and CA for building/fixing wings. I have a whole article to discuss why I like it so much.

UHU Por Glue​

UHU POR glue is ideal for gluing hard foam like styrofoam. It is flexible, resistant to aging and waterproof. Takes 10-20 mins to set, becomes transparent when dried.

Gorilla Clear Glue​

A very popular option for RC model building. Strong stuff for a great range of materials, but personally not a big fan of Gorilla glue, because getting it on your hands can be worse than epoxy!

Materials and Supply​

Zip Ties​

fpv_tools_58

Useful sizes (width): 2mm and 3mm

Silicone Electrical Wires​

fpv_tools_59

Get your electrical wires in various gauges, commonly used sizes for 5″ FPV drones are 12AWG, 14AWG for power, 20AWG for motors, and 28AWG for signals. The size requirement depends on the current going through the wire, check out this guide about electrical wires and connector for more detail.

Heat-shrink Tubes​

Get various sizes for different applications, e.g. 2mm, 3mm for motor wires and XT60 pigtail, 20mm, 25mm for ESCs / RX, etc.

For wires – Red & Black Assortment 198 PiecesFor ESC/RX – Clear 25mm 2:1 shrink ratio
fpv_tools_60fpv_tools_61
http://amzn.to/2iYZVQNhttp://amzn.to/2ADcPbw

Battery Pads​

fpv_tools_62

A good battery pad will stop your battery from sliding, and prevent it from being punctured by the screw heads on the frame. Here are some great sticky pads:

Ummagrip 3mm thick Version

Ummagrip 1.5mm thick Version

Battery Straps​

fpv_tools_63

For 5-inch or larger drones, 20mm width velcro straps are good choice. Typically 200-220mm length for 4S, and 240-260mm length for 6S, but it mostly depends on your choice of frame.

Thread Locker​

fpv_tools_64

Information about thread locker, basically it prevents screws from coming loose due to vibration.

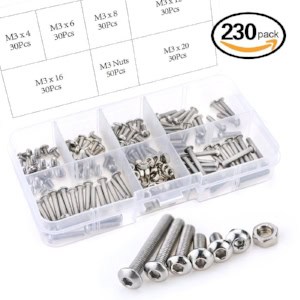

Hardware​

When picking up metal screws and bolts, beware of what material they are made of. My preference is to get 10-9 or 12-9 whenever possible. These numbers refer to the alloy of steel used in the screws. Those are the good stuff, they don’t strip out easily and very strong.

fpv_tools_65

M3 Stainless Steel Screws Assortment: https://amzn.to/3tOpPpA

fpv_tools_66

M3 Nylon Hardware Kit:

AliExpress – https://s.click.aliexpress.com/e/_DEvf1gl
Amazon – https://amzn.to/3xlFMph

Silicone Conformal Coating​

fpv_tools_67

By coating this on your electronics, it makes it water proof! You can learn more in my tutorial.

Isopropyl Alcohol​

fpv_tools_68

Isopropyl alcohol can be used as a degreaser, solvent and cleaning agent. You can use it to clean residue from burnt solder flux, as well as just general cleaning of your electronics. It can also be used to remove certain types of glue, as well as silicone conformal coating.
